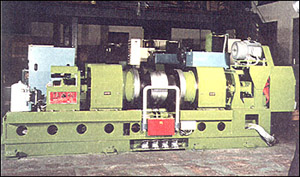

Bias MC0812/MC1619 TBM
Unique features: This machine is designed to build single-bead bias Motorcycle tires.

The machine supplies complete with Head stock and Tail stock assemblies, finger ply down and bladder turn up assemblies, bead setting ring, under stitcher, control and operation panel, and pneumatic solenoid valve panel.
Principle: Ply turn-up with side bladders after swab down and bead setting.
Main shaft brake system: Oil brake fully automatically
Compressor air: Max. 7kg/c¢T normal operation frequency pressure
Power source: As specify

¡@

¡@

Bias MC0812/MC1619 TBM
M/C suitable for drum bead 8"¡ã12" or 16"¡ã19"single bead
Drum outer diameter MC0812 :
8"--220¡í  9" -250¡í  10"-276¡í 12"-336¡í
MC1619 :
16"--430¡í 17"-460¡í 18"-485¡í 19"-510¡í
Machine suitable for drum shoulder width MC0812 : 120¡ã450mm
MC1619 :140¡ã450mm
Drum rotating speed High speed 220/Low speed 110RPM
Centre height of main shaft from floor MC0812 : 900MM
MC1619 : 1000MM
Main drive motor 3/1.5HP 6/12P induction motor
Dimension & weight of machine Dimension :450cm(L)¡Ñ150cm(W)¡Ñ170cm(H)
Weight: 7500kg
Front servicer Not including in this page

¡@
