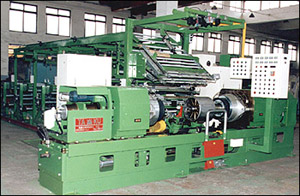

Bias LT1214 / LT 1416 TBM
Unique features: This machine is designed to build single-bead bias Light Truck tires.

The machine supplies complete with Head stock and Tail stock assemblies, finger ply down and bladder turn up assemblies, bead setting ring, under stitcher, control and operation panel, and pneumatic solenoid valve panel.
Principle: Ply turn-up with side bladders after swab down and bead setting.
Main shaft brake system: Oil brake fully automatically
Compressor air: Max. 7kg/cm2 normal operation frequency pressure
Power source: As specify

　

　

Bias LT1214/LT 1416 TBM
M/C suitable for drum bead 12"～14" or 14"～16"single bead
Drum outer diameter 12"-336∮  13"-364∮    14"-396∮
14.5"-419∮   15"-426∮  16"-452∮
Machine suitable for drum shoulder width LT1214 : 250～600mm
LT1416 : 320～600mm
Drum rotating speed High speed 190/Low speed 95 RPM
Centre height of main shaft from floor 1100mm
Main drive motor 3/1.5HP 6/12P induction motor
Dimension & weight of machine Dimension :450cm(L)×200cm(W)×170cm(H)
Weight: 7500kg
Front servicer Not including in this page
